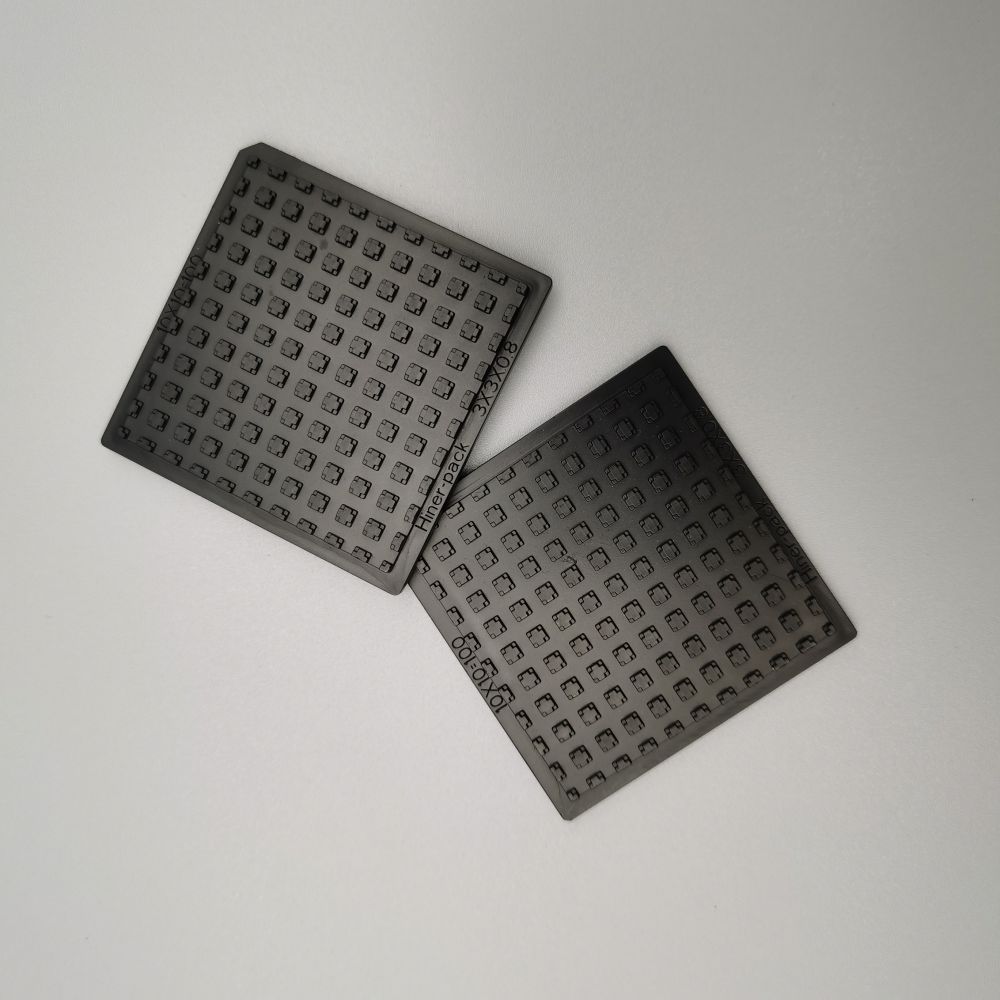

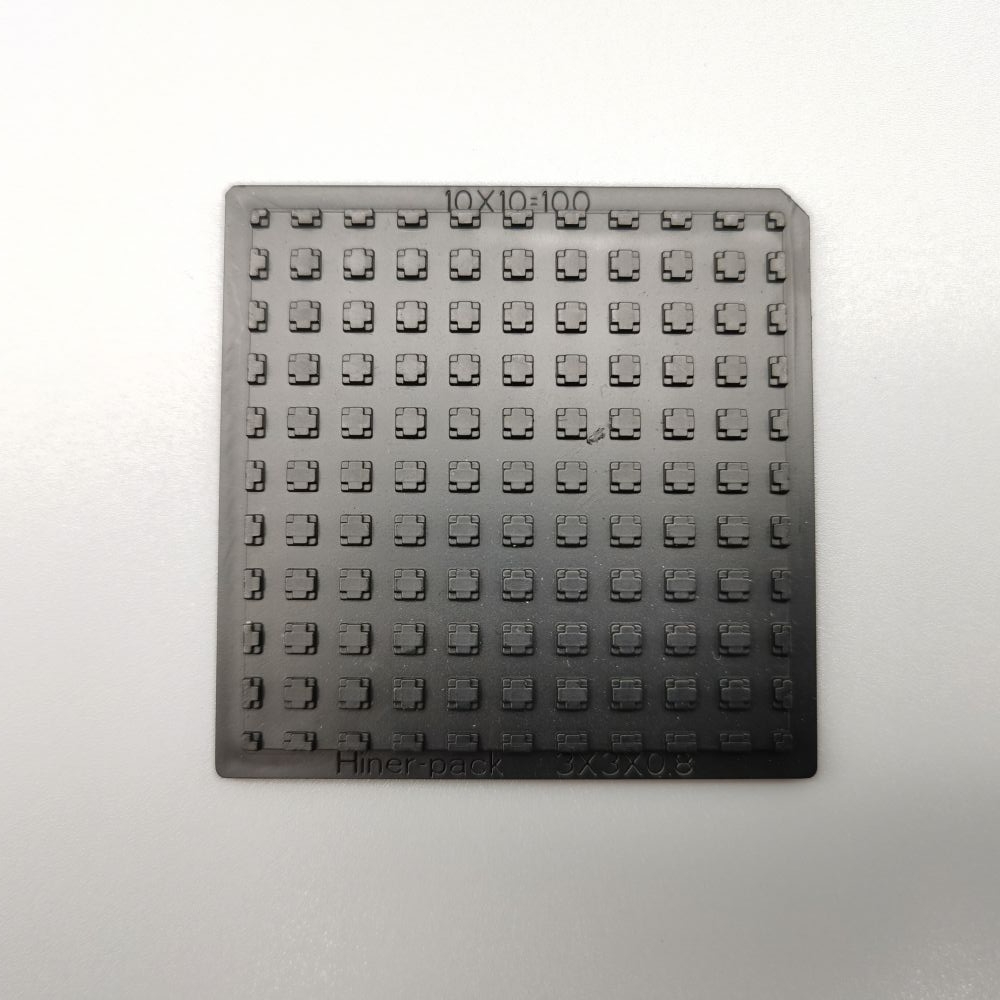

Special Inverted Components ESD Tray Anti Static 100PCS ROHS Certificate
Durable Anti-Static Chip Tray Customized For Special Inverted Design Components
As the tray in the field of optical application, more and more customers in order to protect components or optical devices, are willing to choose injection molding tray for packaging solution, because the tray can carrier component also provides comprehensive protection to transit and transport provides great convenience, all kinds of specifications and various color can be realized,Provide one-stop service from design to production to packaging.
What is ESD safe material?
ESD-safe materials are created by combining an optimized base material – often ABS, PET-G, or PC – with an additive. The base material will determine the properties of the finished part, such an flexibility or strength. This means choosing the right base material for your application is an important decision.
Benefits
Able to present non-standard components to Pick and Place machines
Multiple uses for fixture including component bake-out, storage and shipping
Cost effective alternative to “tape and reel” or “hand” placement
1. Small size, light weight, low transportation cost
2. Each tray can accommodate a large number of chips suitable for transfer or loading samples for testing
3. Stable anti-static performance, good protection chip is not hurt by resistance
4. Very good flatness, easy to operate on automatic equipment
5. It can be matched with the cover and clips of the same series, convenient to meet all kinds of shipping methods
6. Recycling, plastic material is easy to degrade after waste, no environmental concerns
7. It can be stack-able and can also ensure the design of maximum utilization of tray matrix
| Outline Line Size |
50.7*50.7*4mm |
Brand |
Hiner-pack |
| Model |
HN2030 |
Package Type |
IC Parts |
| Cavity Size |
3*3*0.8mm |
Matrix QTY |
10*10=100PCS |
| Material |
ABS |
Flatness |
MAX 0.2mm |
| Color |
Black |
Service |
Accept OEM,ODM |
| Resistance |
1.0x10e4-1.0x10e11Ω |
Certificate |
ROHS |
| Outline Size |
Material |
Surface Resistance |
Service |
Flatness |
Color |
| 2" |
ABS.PC.PPE...etc |
1.0x10e4-1.0x10e11Ω |
OEM,ODM |
Max 0.2mm |
Customizable |
| 3" |
ABS.PC.PPE...etc |
1.0x10e4-1.0x10e11Ω |
OEM,ODM |
Max 0.25mm |
Customizable |
| 4" |
ABS.PC.PPE...etc |
1.0x10e4-1.0x10e11Ω |
OEM,ODM |
Max 0.3mm |
Customizable |
| Custom size |
ABS.PC.PPE...etc |
1.0x10e4-1.0x10e11Ω |
OEM,ODM |
TBC |
Customizable |
| Provide professional design and packaging for your products |
Product Application
Wafer Die / Bar / Chips PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
FAQ
Q: Can you do OEM and customized design IC tray?
A: We have strong mold manufacturing and product design capabilities, in the mass production of all kinds of IC trays also have rich experience in production.
Q: How long is your delivery time?
A: Generally 5-8 working days, depending on the actual purchase QTY of orders.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.
