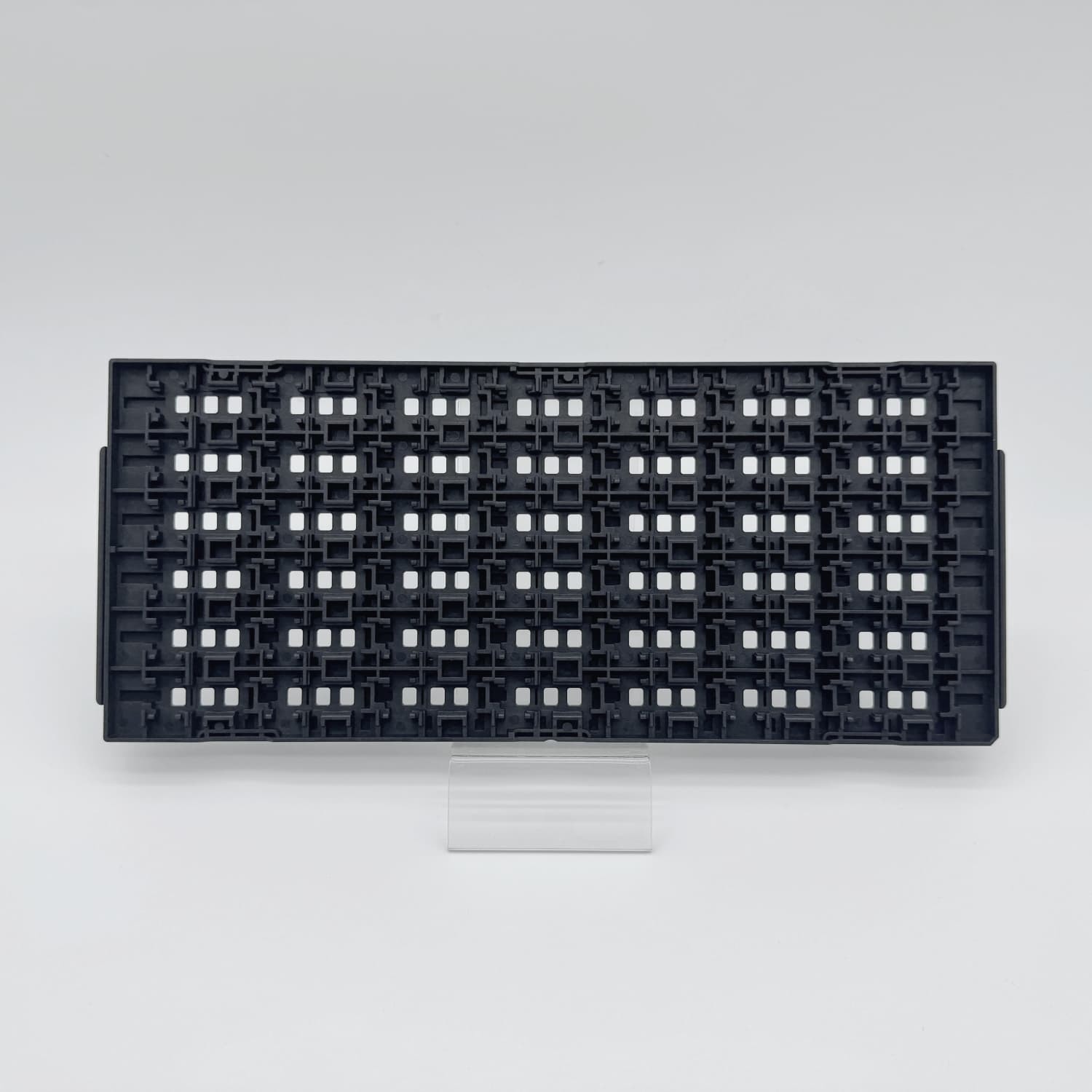

Anti-Static And Automation Ready Custom JEDEC Tray For IC Packaging
Protect and transport your ICs with confidence—our JEDEC trays meet industry standards and adapt to your exact chip form factor.
This JEDEC-compliant matrix tray provides a practical and robust solution for organizing electronic components throughout automated assembly, inspection, and shipping processes. The tray is engineered to uphold part alignment and safeguard components in challenging operational environments. It is equipped with precision-molded pockets and industry-standard orientation markers, facilitating effortless integration with pick-and-place systems.
Constructed from ESD-safe material, this tray guarantees reliable performance in cleanroom settings as well as general production facilities, adding value across various industries requiring electronic component management. Its durable design ensures longevity and consistent protection of components during handling and transportation processes.
Features:
Universal Compatibility: Complies with JEDEC standards to facilitate integration across different manufacturing platforms and handling systems.
Effective ESD Control: The use of conductive materials provides continuous protection against electrostatic discharge for sensitive components.
Accurate Component Placement: Equally spaced compartments ensure secure alignment of parts, minimizing the chances of misfeeds or damage during handling.
Automation-Ready Features: Includes built-in elements like pickup zones, corner chamfers, and orientation tabs to aid in robotic and mechanical handling processes.
Stack-Safe Construction: A sturdy interlocking system prevents tray shifting when vertically stacking, whether during storage or transit.
Durable Performance: Withstands repeated handling, temperature variations, and long-term usage while maintaining structural integrity.
Technical Parameters:
| Brand | Hiner-pack | Outline Line Size | 322.6*135.9*12.19mm |
| Model | HN24054 | Cavity Size | 34.8*11.4*7.46mm/13.2*10.52*3.425mm |
| Package Type | IC Component | Matrix QTY | 6*7+6*7=84PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM, ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | RoHS |
Applications:
This matrix tray is versatile and well-suited for a variety of uses. It can be utilized in semiconductor packaging, module assembly, quality inspection, and product shipment applications. The tray facilitates controlled movement of parts between workstations, enhances traceability during production, and aids manufacturers in maintaining uniform part orientation through automated processes.
Due to its reliability, this matrix tray is an excellent option for sectors such as communications, computing, automotive electronics, and consumer devices. Its ability to support various industry needs and ensure consistent performance makes it a valuable tool in the manufacturing domain.
Customization:
Tailored tray versions can be provided to meet diverse product or process needs:
-
Modified Pocket Structure: Adapt pocket dimensions and contours to fit custom ICs, sensors, or non-standard device profiles.
-
Color Material Options: Choose ESD-safe materials in different colors for process visibility, part type separation, or line control.
-
Molded Identification Marks: Add permanent alphanumeric codes, customer-specific logos, or process indicators for improved tracking.
-
Feature Adaptation: Include additional tabs, slots, or locator keys for compatibility with proprietary automation or specialty feeders.
